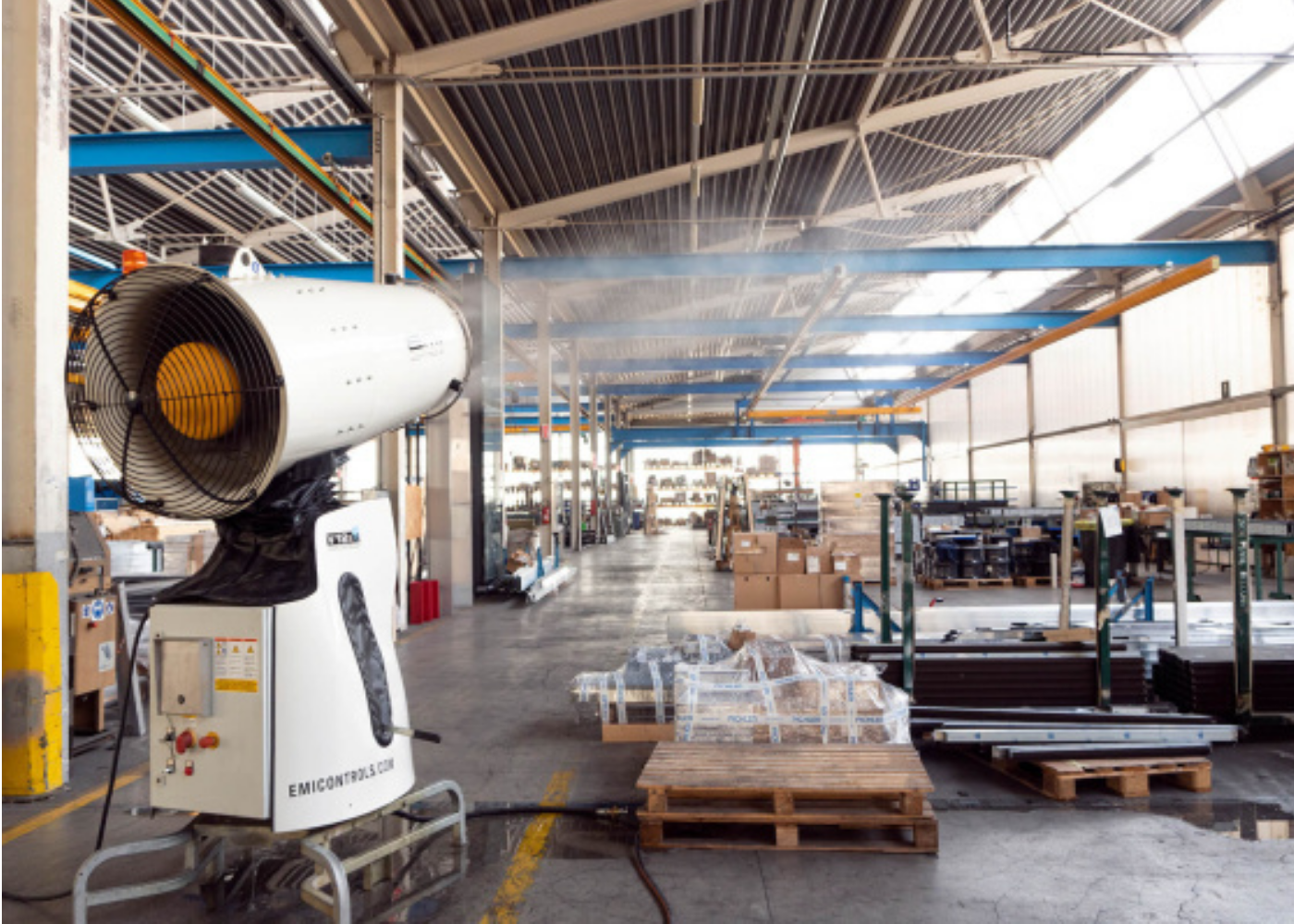

V12so
Four functions in one machine
The V12so is a true all-rounder and now combines four different functions in one machine. The system was originally developed to eliminate odours. In recent months, however, it has impressively demonstrated that it is also ideal for disinfection, thanks to its low water consumption and dosing pump. In addition, the machine works excellently for indoor dust suppression, and in summer it is also popular for cooling and refreshing.
The advantages of the V12so
The V12so offers a range of advantages that contribute to an efficient and safe working environment. Thanks to its advanced technology and ability to generate water vapour, this mist generator can achieve a considerable temperature reduction while improving air quality. This allows employees and visitors to work in a more pleasant and safer environment, even under the most challenging conditions.
Technical data in brief
The V12so works with two speed levels:
- Throw distance: 30* m / 50 m
- Turbine motor power: 3* / 11 kW
- Pump capacity: 0.75 kW
- Sound pressure level LA: 60* / 63 dB(A) at 20 m
- Water flow rate: 4 l/min
- Working pressure: 70 bar
- 30-litre tank for mixing liquid
*at reduced speed
Four possible applications
Odour control
The V12so can be used anywhere unpleasant odours occur.
Dust suppression
Because the V12so needs only 4 litres of water per minute, the machine is also excellent for dust suppression in dusty indoor spaces.
Disinfection
Thanks to its high-pressure system, the V12so creates an extremely fine water mist while consuming only 4 litres per minute. As a result, the disinfectant reaches every nook and cranny.
Cooling
On hot summer days, the V12so provides cooling with its fine curtain of water mist.
Flexible use in any situation
Recent times have shown that adaptability is more important than ever for businesses. The V12so is one of the most versatile machines in the range. Not only can the machine be used in a wide range of applications, it also has several practical and flexible features:
- the V12so can be operated by remote control or locally at the machine
- thanks to the i-timer function, the V12so switches on and off automatically if desired
- the machine works with two speed levels, allowing the throw distance to be adapted to specific needs
- if desired, the machine can rotate automatically or manually
Proven effectiveness
The effectiveness of the V12so for disinfection has been tested together with the independent laboratory SEA in Trento. The result is excellent: 95% of bacteria and viruses can be reduced.
For odour control, the Politecnico di Milano university has confirmed that the V12so eliminates 60 to 80% of unpleasant odours, in accordance with the UNI EN 13725 standard.
Areas of application
Thanks to its versatility, the V12so is particularly interesting for:
- landfills (dust, odour and disinfection)
- large halls with wood processing, to increase humidity (dust, disinfection, cooling)
- indoor crushing plants (dust)
- production halls (disinfection, cooling)
- large transfer points and halls (disinfection)
- large public halls or buildings, such as train stations, shopping centres and airports
- recycling plants (dust, odour, disinfection)
Spraybest Europe and the V12so
As a leading distributor and wholesaler of technical nozzles and compression products, Spraybest Europe is proud to offer the V12so to our customers. Thanks to our extensive knowledge and experience in the industry, we can provide the right support and advice on the implementation and maintenance of this advanced device. Whether you manage a small project or are responsible for a large event, the V12so is the ideal choice for a high-quality solution.
At Spraybest Europe, we believe in the power of technology and innovation. The V12so is an example of how modern techniques can contribute to efficiency and effectiveness in a wide range of sectors. With the support of Spraybest Europe, you can count on a product that not only meets your expectations, but can even exceed them.
Key technical data:
| Throw distance (up to) | 30* / 50 m |
| Rated turbine power | 3* / 11 kW |
| Rated pump power | 0.75 kW |
| Sound pressure level LA | 60* / 63 at 20 m dB(A) |
| Operating temperature | 0° to +35° |
| Turbine tilt | 0° to +52° |
| Water flow rate | 4 l/min |
| Rotation (automatic) | 360° |
| Water supply pressure | 1 - 8 bar |
| Working pressure | 70 bar |
| Additive tank | 30 l |
* at reduced speed
Applications

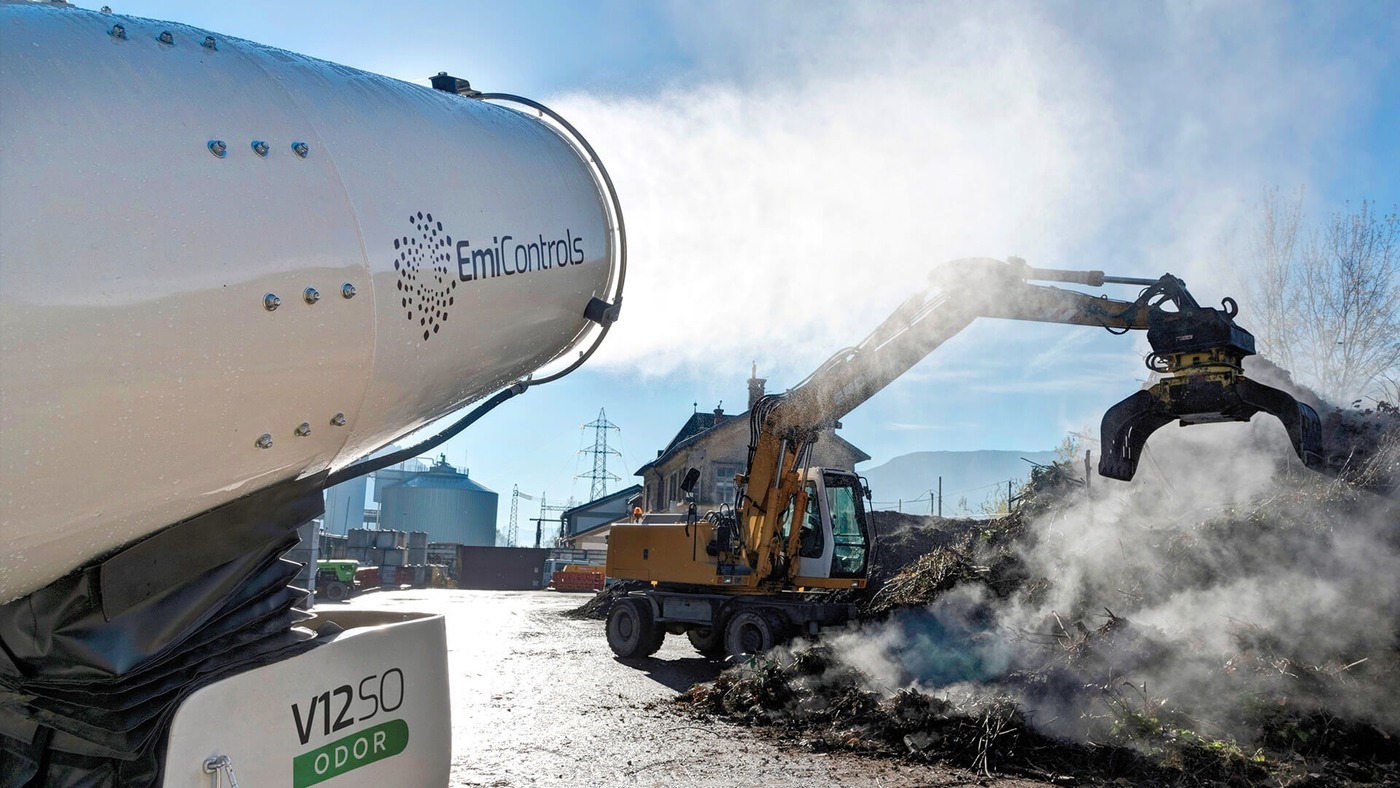

Composting
Composting facilities often have to deal with varying sources of odor, depending on the process. A mobile setup that is easy to install and remove is a good solution for this.
Water Treatment
Treatment plants are rarely isolated, which means that odor control must be just as precise as the treatment process they are part of.
Recycling
Large recycling facilities often have to deal with dust sources in multiple locations at once, from storage areas to sorting lines. By combining fixed and mobile solutions, our approach is tailored precisely to the layout and operations of each facility.
